Printable Diamond Grade Reflective Sheeting with High Reflectivity and Micro Prismatic Structure for Road Safety

Name: Printable Diamond Grade Reflective Sheeting with High Reflectivity and Micro Prismatic Structure for Road Safety
Brand: Anhui Lu Zheng Tong New Material Technology Co., Ltd.
SKU: LZT9800
Availability: InStock

ブランド名:	LU
型番:	LZT9800
MOQ:	1ロール
価格:	交渉可能
支払条件:	L/C、D/A、D/P、ウェスタンユニオン、T/T
供給能力:	10000のロール/月

詳細情報

製品説明

詳細情報

起源の場所:

中国

製品シリーズ:

LZT 9800

反射度:

ダイヤモンドグレード

反射構造:

マイクロプリズム

カスタマイズされたサービス:

OEM&ODMをサポート

使用:

高度の視力,防水

サイズ:

1.22*45.72m（4*150ft）またはカスタマイズ

剥離ライナー:

はい

サンプル:

自由に

反射率:

最大 500 cd/lx/m² の高い反射率

特徴:

印刷可能耐久耐候

パッケージの詳細:

1 ロール/カートン

供給の能力:

10000のロール/月

ハイライト:

Printable Diamond Grade Reflective Sheeting

High Reflectivity Reflective Sheeting

Micro Prismatic Diamond Reflective Sheeting

製品説明

Diamond-Grade Reflective Sheeting for Road Safety

The LZT9800 Diamond Grade Reflective Sheeting series offers an industry-leading reflective solution engineered for maximum conspicuity and long-term performance in critical road safety applications. Utilizing advanced full-cube prismatic optics, this material delivers exceptionally high retroreflectivity, uniform brightness at wide observation angles, and outstanding durability—making it the preferred choice for highway, freeway and high-risk signage where visibility can be lifesaving.

Key Technology and Standards

Reflective Technology: Full-Cube Prismatic – the precision-engineered prismatic structure returns light to drivers more efficiently than conventional micro-prismatic or glass-bead films
Specifications Met: ETA Class 3 and ASTM D4956 Type XI – confirming superior retroreflective performance
Type of Adhesive: Pressure-Sensitive Adhesive (PSA) – provides strong, reliable bonding to common sign substrates

Imaging & Printability

Digital print, electronic cutting, and screen printing – the Diamond Grade Reflective Sheeting accepts a wide range of fabrication techniques so signs can be produced with precise graphics, vivid colors, and long-lasting legends. Its surface is optimized for sharp, high-contrast output while preserving reflective performance.

Color & Specification Options

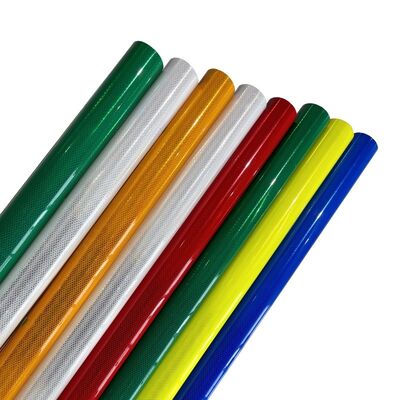

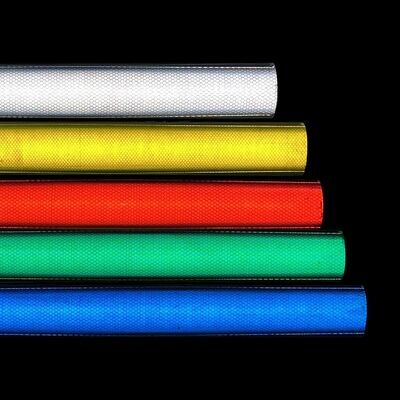

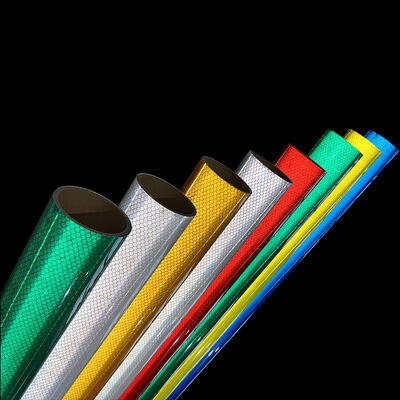

Available Colors: White, Yellow, Red, Green, Blue, Orange, Brown, and Lime Green Yellow
Standard Roll Size: 1.22 m × 45.72 m (4 ft × 150 ft) or customized widths and lengths
Operating Temperature: 18°C-28°C – recommended application temperature for optimal adhesion

Primary Applications

Highways and Freeways: Specifically tailored for high-speed environments where early detection improves reaction time
Work Zones and Construction Areas: Superior reflectivity makes temporary and permanent work zone signs more conspicuous
Warning Signs and Critical Traffic Control: Ensures safety messages remain clear day and night

Performance Advantages

Exceptional Retroreflectivity for greater visibility at longer distances
Wide Angle Visibility maintains consistent brightness at steep viewing angles
Long Service Life reduces replacement frequency and lifecycle costs
Fabrication Friendly with common sign manufacturing processes
Reliable Adhesion to aluminum and other professional signmaking substrates

About LU Reflective Sheeting Manufacturers

Since 1998, Anhui Lu Zheng Tong New Material Technology Co., Ltd. has specialized in R&D, production, sales and service of reflective materials and safety products. LU brand products include reflective sheeting, vehicle reflective tapes, marine SOLAS reflective tapes, photoluminescent films, glow in the dark tapes, and reflective traffic signs.

With ISO 90001, 3C, E-mark ECE104, DOT-C2, Intertek certifications and over 20+ patents, our products are exported worldwide. Our 13,000 m² production base features automatic production lines, advanced equipment, and complete quality inspection systems to provide excellent quality and stable production capacity.

Technical Support & Services

We provide full technical support including installation guidance, application recommendations, performance consultation, product testing, customization support, and professional training to meet specific project requirements.

Packing & Shipping

Packaging: Each roll is packed in sturdy cardboard cartons with protective plastic wrapping to prevent scratches and transit damage. Custom packaging services available.

Shipping: Shipped via ground transportation with costs calculated based on destination and weight. Tracking information provided after dispatch.
